Description

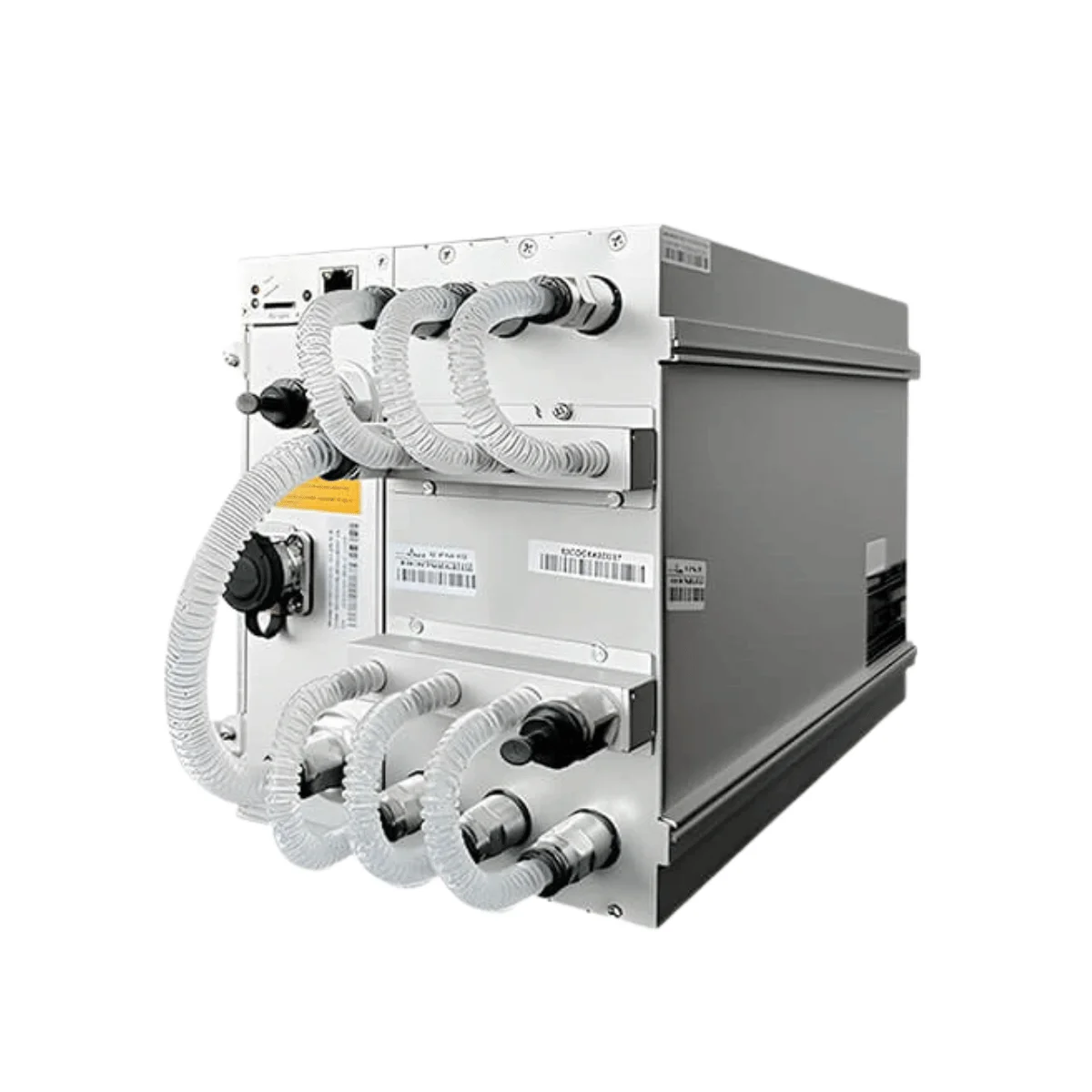

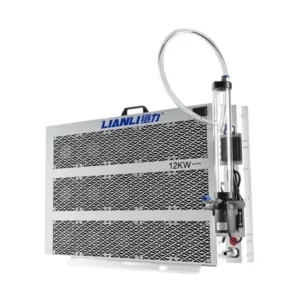

The Bitmain Antminer S23 Hyd (a.k.a. Antminer S23 Hyd 580T) is a high-performance SHA-256 miner for BTC, delivering 580 TH/s at approximately 5,510 W (9.50 J/TH). Its hydro-cooling design supports high-density continuous operations. Radiator sold separately. For a ready-to-use loop, see the 12 kW Water Cooling Kit for ASIC.
SPECIFICATIONS — Antminer S23 Hyd (580 TH/s)
| Manufacturer | Bitmain |
|---|---|
| Model | Antminer S23 Hyd (Antminer S23 Hyd 580T) |
| Hashing algorithm / Coins | SHA-256 / BTC |
| Hashrate | 580 TH/s |
| Energy efficiency | 9.50 J/TH (typical) |
| Power consumption | 5,510 W |
| Cooling | Hydro cooling — radiator sold separately (ensure proper loop: flow/pressure/coolant quality). Buy the compatible 12 kW radiator. |
| Noise level | ~50 dB |
| Dimensions (miner) | 410 × 170 × 209 mm / Hydro ASIC |
| Dimensions (packaged) | 570 × 316 × 430 mm |
| Net weight | 13.0 kg |
| Gross / shipping weight | 14.8 kg |
| Electrical (input) | 380–415 V AC · 3-phase · 50–60 Hz · max 12 A |
| Power input (PSU) | 380–415 V |
| Interface | RJ45 Ethernet 10/100M |
| Operating temperature | Coolant inlet 20–50 °C |
| Humidity | 10–90% RH (non-condensing) |
| Release | January 2026 |
Electrical installation requirement
- This miner requires a compatible three-phase electrical supply. Verify the specified voltage, circuit protection, grounding and power connector with a qualified electrician before installation.
- Do not connect this equipment to a standard single-phase household outlet unless the manufacturer explicitly specifies a compatible configuration.
Hydro installation requirements
- Radiator / external cooling loop is required unless the installation already provides a compatible heat-rejection system.
- Verify coolant quality, flow, pressure, leak testing and electrical provisioning before operation.
Notes
- Actual hashrate, efficiency, acoustics and power draw vary with coolant temperature, ambient conditions, firmware and electrical configuration.
- Ensure adequate hydraulic capacity, leak testing and electrical provisioning for the specific installation.
- Mining output varies with network conditions, pool performance and uptime.
Your purchase includes (Next Level Corp)
- Setup and configuration.
- Creation of a verified Binance account (if you don’t have one).
- Linking the miner to your wallet.
- Creation and connection to the mining pool.
- Full remote monitoring and control from your smartphone, anywhere in the world.
- Lifetime 24/7 technical advice.
- First maintenance at 50% off (air-cooled rigs: 90 USDT every 1 year / Hydro rigs: 200 USDT every 3 years).
- Genuine spare parts for sale — available and guaranteed.
- Service and technical support (the only official technical support in Bolivia).
- 1-year official manufacturer’s warranty.
SHIPPING
We ship worldwide by air. Tracking is provided 3 days after purchase.
We ship worldwide by air. Tracking is provided 3 days after purchase.
DELIVERY
Delivery is made to your doorstep via DHL within 7 to 10 days.
Delivery is made to your doorstep via DHL within 7 to 10 days.
Important Notice:
Mining profitability is variable and depends on market conditions, electricity costs, network difficulty, and operational factors. Figures shown are estimates only and do not constitute guaranteed returns.
