Description

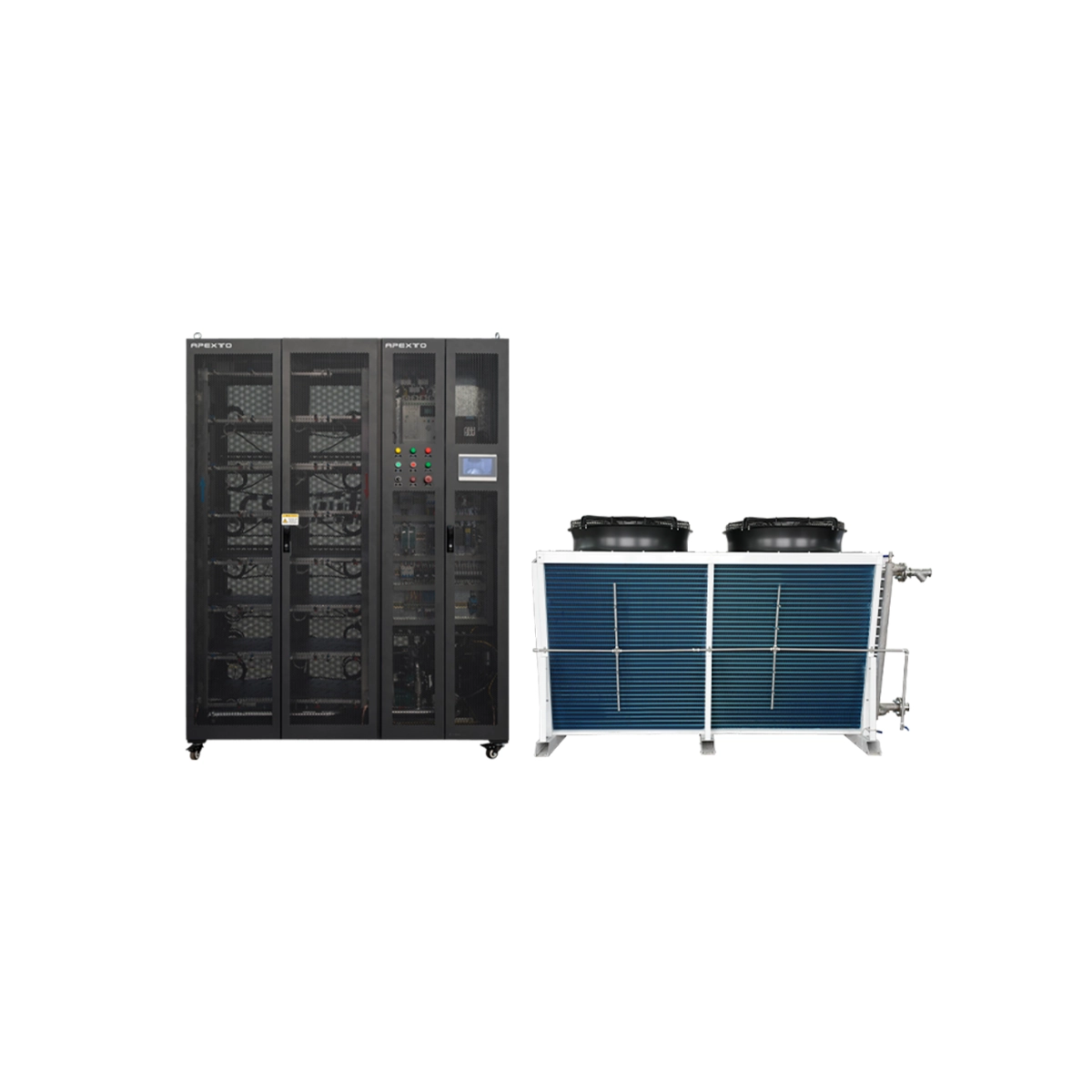

The 28-Slot 154kW Antminer Integrated Water Cooling Cabinet is a professional Hydro mining infrastructure solution designed to support up to 28 compatible Antminer Hydro miners in a compact, organized industrial rack. The system combines high-flow liquid cooling, centralized power management, individual miner protection, leak detection and intelligent monitoring for continuous high-density mining operations. It can be integrated with an appropriately matched dry cooler or closed cooling tower depending on site and environmental requirements. Next Level Corp provides local sales, deployment guidance and long-term technical support.
| Product type | Integrated Hydro cooling cabinet for Antminer miners |
|---|---|
| Model | AP-A28 |
| Installed capacity | Up to 28 compatible Antminer Hydro miners |
| Installed power load | 154 kW |
| Cooling | Hydro liquid cooling with external heat-rejection system |
| Supported cooling configurations | Compatible with matched Dry Cooler or Closed Cooling Tower configurations |
| Electrical input | 380–415 V AC · 3-phase · 50–60 Hz |
| Main circulation pump power | 4 kW |
| Fluid replenishing pump power | 0.2 kW |
| Dry cooler fan total power | 12.45 kW |
| Closed cooling tower fan power | 2.2 kW |
| Closed cooling tower spray pump | 0.75 kW |
| System pipeline pressure | 0.2–0.4 MPa |
| System operating temperature | 22–42 °C |
| Coolant flow requirement per miner | ≥0.5 m³/h |
| Total circulating coolant demand | ≥0.28 m³ |
| Residual Current Circuit Breaker | 400 A |
| Contactor | 9 A |
| Intermediate relay | 24 V |
| Frequency converter | 380 V · CUL certified |
| Cabinet construction | Industrial rack with 304 stainless steel coolant manifold |
| Miner protection | Individual labeled circuit breaker for each miner position |
| Leak detection | Integrated moisture-sensing leak detection system |
| Monitoring | Real-time temperature, pressure and coolant-flow monitoring with automatic pump/fan speed regulation |
| Compatible miner families | Antminer S19 Hydro, S21 Hydro, S23 Hydro and other compatible standard Antminer Hydro miners |
| External dimensions | 1750 × 1000 × 2200 mm |
| Internal dimensions | 1700 × 950 × 2150 mm |
| Weight | Approximately 552 kg |
Notes
- This system requires a professional 380–415 V three-phase electrical installation sized for continuous industrial mining loads.
- The cabinet supports up to 28 compatible Antminer Hydro miners, subject to miner dimensions, power requirements and coolant-flow requirements.
- Each miner position includes individual electrical protection, allowing a miner to be isolated for maintenance without unnecessarily interrupting the entire rack.
- The integrated CDU monitors coolant temperature, pressure and flow while automatically regulating pumps and fans according to operating conditions.
- The cabinet incorporates leak detection to provide early warning if coolant is detected inside the system.
- A dry cooler is generally suitable where reduced water consumption and simpler maintenance are priorities, while a closed cooling tower can provide additional thermal performance depending on climate and site conditions.
- Verify transformer capacity, electrical distribution, grounding, cooling equipment, plumbing, clearances and site infrastructure before installation.
- Two freight options are available: Air Freight with an estimated 7–10 day delivery time and Sea Freight with an estimated 45-day delivery time.
Your purchase includes (Next Level Corp)
- Pre-installation compatibility and deployment guidance.
- Guidance for electrical, Hydro cooling and rack installation requirements.
- Configuration assistance for compatible Antminer Hydro equipment.
- Guidance for coolant, piping and external heat-rejection integration.
- Remote technical assistance during setup and commissioning.
- Pool and wallet configuration assistance for installed miners.
- Lifetime 24/7 technical advice.
- Genuine spare parts and compatible Hydro accessories available for sale.
- Local service and technical support in Bolivia.
- Manufacturer warranty according to the applicable equipment and purchase terms.
This product is available with two freight options: Air Freight or Sea Freight. The selected shipping price includes transportation to the nearest destination port.
Important Notice:
This is industrial Hydro mining infrastructure and requires appropriate three-phase electrical capacity, external heat-rejection equipment, liquid-cooling connections, installation space and professional commissioning. The 154 kW specification refers to the installed mining power-load capacity of the rack and is not the power consumption or hashrate of an individual ASIC miner. The cooling configuration included in the final order should be confirmed according to the selected commercial quotation and site requirements.
